Speaker - Parcel Shelf




Speaker - Parcel Shelf









Removal and Installation

1. Remove the parcel shelf.

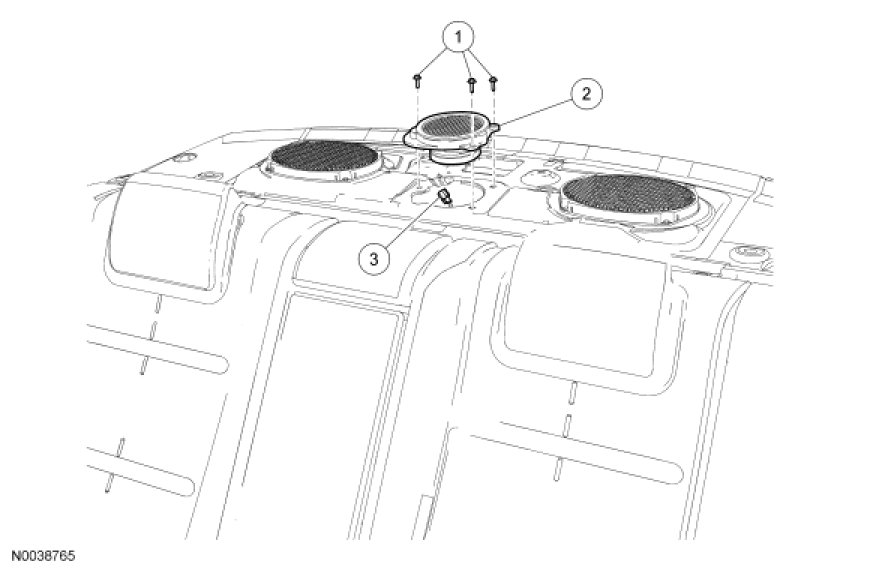

2. Remove the 3 screws and the parcel shelf speaker.
- Disconnect the electrical connector.

3. To install, reverse the removal procedure.
