Brake Booster: Notes

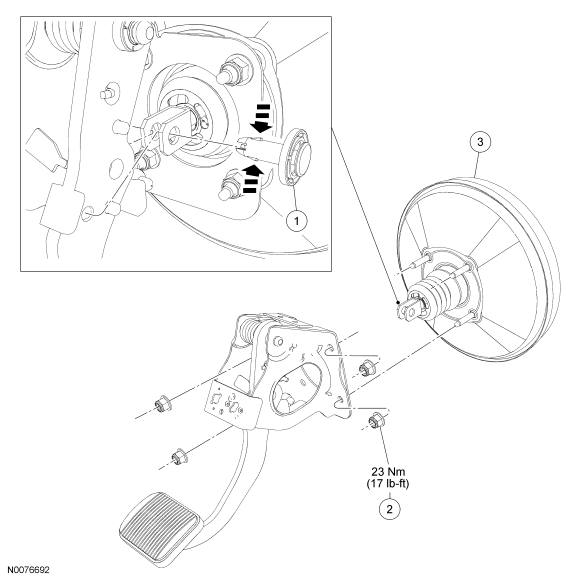

Fig 1: Brake Booster Components With Torque Specifications
GF0043272Courtesy of FORD MOTOR CO.
Item Part Number Description
1 2L523 Booster rod-to-pedal pin
2 W520212 Brake booster nut (4 required)
3 2005 Brake booster
