Quarter Panel Speaker




Quarter Panel Speaker

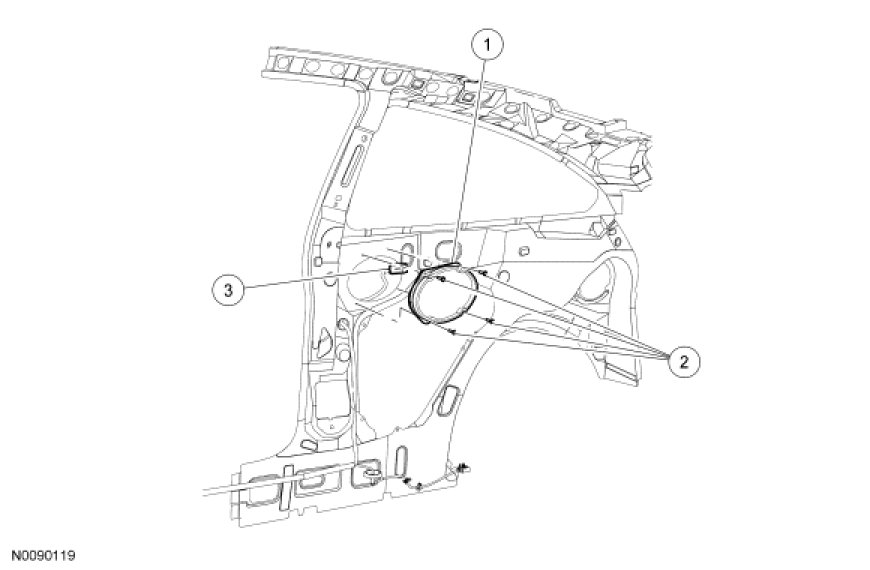

Removal and Installation

1. Remove the quarter trim panel.

2. Remove the 4 screws and the quarter panel speaker.
- Disconnect the electrical connector.

3. To install, reverse the removal procedure.
