Transaxle Cooling

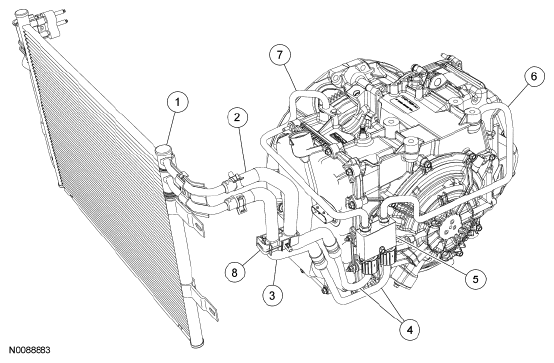

ITEM DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | 19712 | Transmission fluid cooler |
| 2 | 7R081 | Transmission fluid cooler outlet tube and hose assembly |
| 3 | 7R081 | Transmission fluid cooler inlet tube and hose assembly |
| 4 | 7J081 | Secondary latches |
| 5 | 7H322 | Transmission fluid cooler thermal bypass valve |
| 6 | 7H420 | Transmission fluid cooler inlet tube |
| 7 | 7H420 | Transmission fluid cooler outlet tube |
| 8 | 8W287 | Transmission fluid cooler tube bracket |
When internal wear or damage has occurred in the transaxle, metal particles, clutch plate material or band material may have been carried into the torque converter and transmission fluid cooler. These contaminants are a major cause of recurring transaxle troubles and must be removed from the system before the transaxle is put back into use. Refer to TRANSMISSION FLUID COOLER BACKFLUSHING AND CLEANING .
