Wheel Knuckle - Front Wheel Drive (FWD): Notes

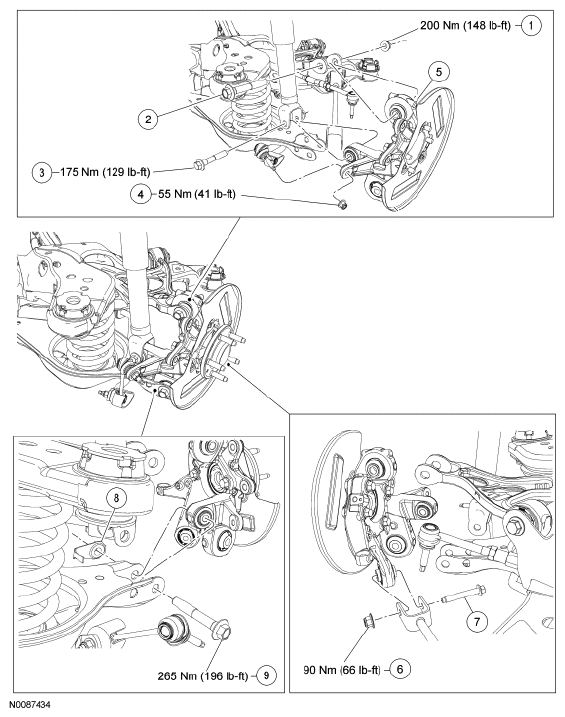

Fig 1: Front Wheel Drive (Knuckle) Replacement Components With Torque Specifications (1 Of 2)

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION CHART

Item	Part Number	Description
1	W520517	Upper arm-to-wheel knuckle nut
2	W711479	Upper arm-to-wheel knuckle bolt
3	W714033	Shock absorber lower bolt
4	W520213	Stabilizer bar link upper nut
5	5B759 LH/ 5B758 RH	Wheel knuckle
6	W707246	Trailing arm-to-wheel knuckle nut
7	W500747	Trailing arm-to-wheel knuckle bolt
8	W713940	Lower arm-to-wheel knuckle nut
9	W711479	Lower arm-to-wheel knuckle bolt

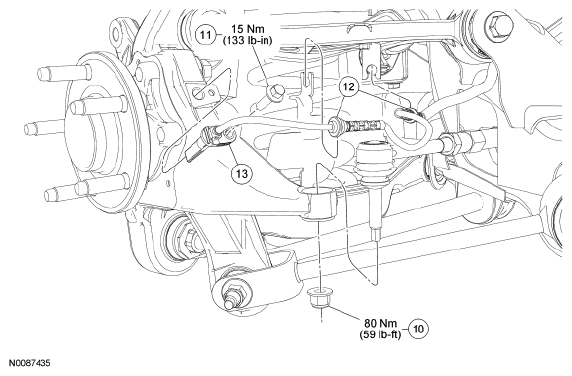

Fig 2: Front Wheel Drive (Knuckle) Replacement Components With Torque Specifications (2 Of 2)

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION CHART

Item	Part Number	Description
10	W520214	Toe link-to-wheel knuckle nut
11	W712797	Wheel speed sensor bolt
12	W520214	Wheel speed sensor harness clips (part of 2C190) (2 required)
13	2C190	Wheel speed sensor
