Special Tool(s)

SPECIAL TOOL REFERENCE

Courtesy of FORD MOTOR CO.

Remover, Front Wheel Hub
205-D070 (D93P-1175-B) or equivalent

NOTE: All-Wheel Drive (AWD) shown in illustration, Front Wheel Drive (FWD) vehicles similar.

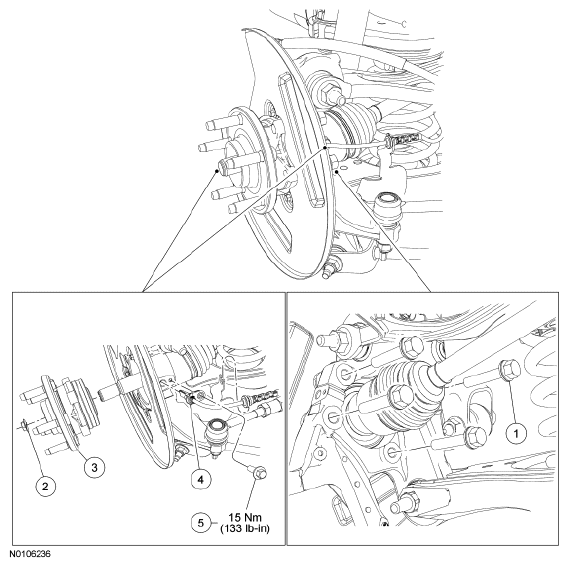

Fig 1: Wheel Bearing And Wheel Hub Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION CHART

Item	Part Number	Description
1	W714333	Wheel bearing and wheel hub bolt (4 required)
2	W712435	Wheel hub nut All-Wheel Drive (AWD)
3	2C300	Wheel bearing and wheel hub
4	2C190	Wheel speed sensor
5	W712797	Wheel speed sensor bolt
