Upper Arm: Notes

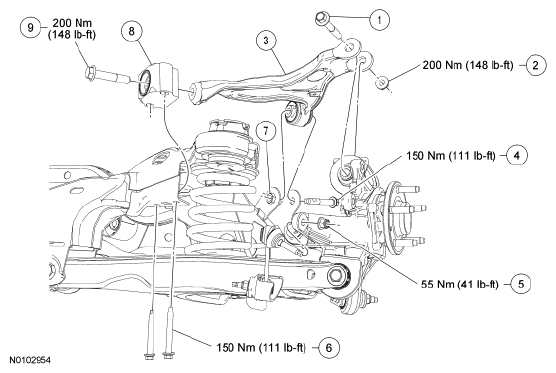

Fig 1: Upper Arm Replacement Components With Torque Specifications (1 Of 3)

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION CHART

Item	Part Number	Description
1	W711479	Upper arm-to-wheel knuckle bolt
2	W520517	Upper arm-to-wheel knuckle nut
3	5A804 LH/ 5502 RH	Upper arm
4	W713307	Upper arm-to-subframe forward bolt
5	W520213	Stabilizer bar link upper nut (2 required)
6	W714439	Upper arm-to-subframe rearward bolt (2 required)
7	W714175	Upper arm-to-subframe forward nut
8	5A638	Upper arm rearward bushing
9	W713108	Upper arm rearward bushing bolt

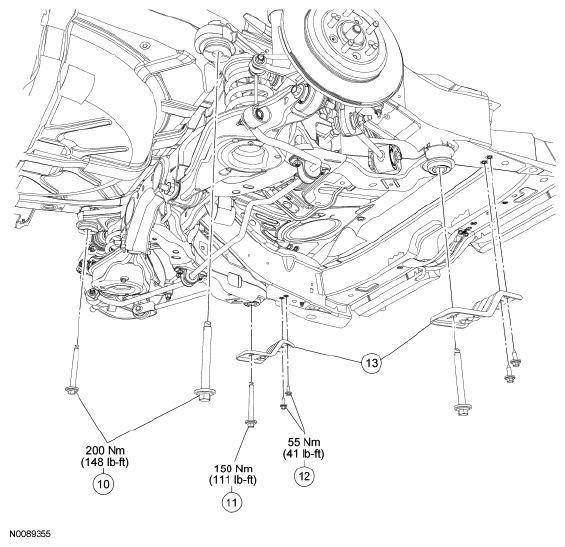

Fig 2: Upper Arm Replacement Components With Torque Specifications (2 Of 3)

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION CHART

Item	Part Number	Description
10	W713714	Subframe rearward bolts (2 required)
11	W713714	Subframe forward bolt (2 required)
12	W711270	Subframe bracket bolts (4 required)
13	5084AA LH/ 5084AB RH	Subframe brackets (2 required)

NOTE: Brake disc has been removed for clarity.

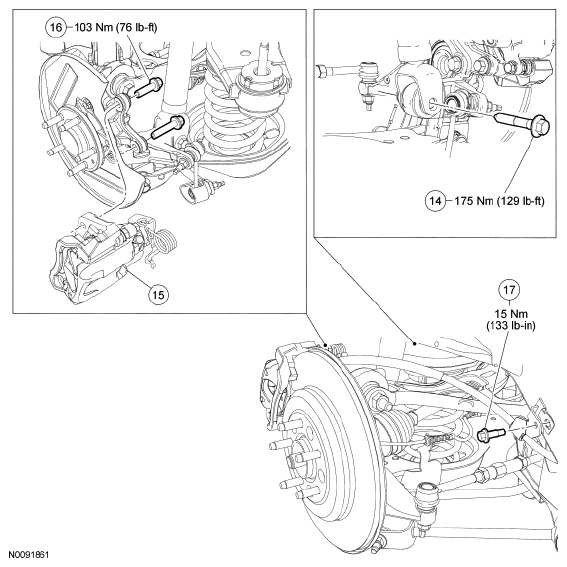

Fig 3: Upper Arm Replacement Components With Torque Specifications (3 Of 3)

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION CHART

Item	Part Number	Description
14	W714033	Shock absorber lower bolt
15	-	Brake caliper and anchor plate assembly
16	W710681	Brake caliper anchor plate bolt (2 required)
17	W506423	Parking brake cable bracket bolt (2 required)
