Trailing Arm: Notes

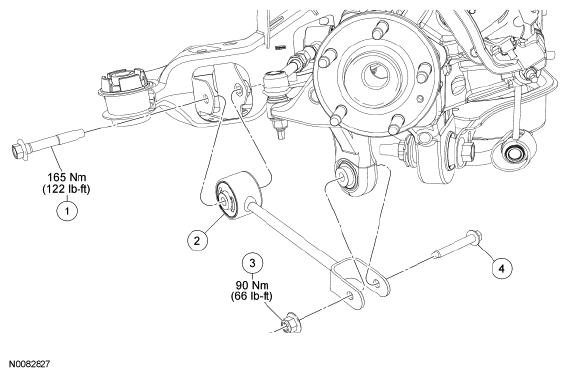

Fig 1: Trailing Arm Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION CHART

Item	Part Number	Description
1	W711114	Trailing arm-to-subframe bolt
2	5B674	Trailing arm
3	W707246	Trailing arm-to-wheel knuckle nut
4	W500747	Trailing arm-to-wheel knuckle bolt
