Toe Link: Notes

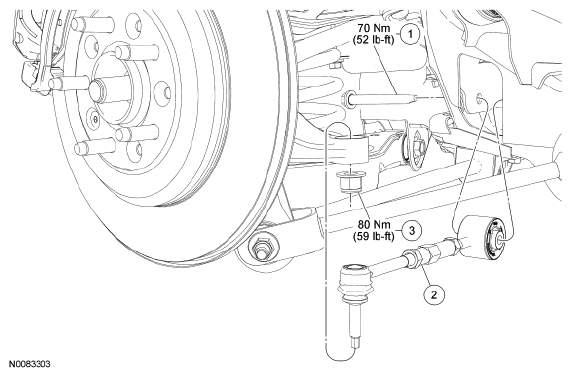

Fig 1: Toe Link Replacement Components With Torque Specifications
G06064899Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION CHART

Item Part Number Description
1 W714325 Toe link-to-subframe bolt
2 5A972 Toe link
3 W520214 Toe link-to-wheel knuckle nut
