Stabilizer Bar: Notes

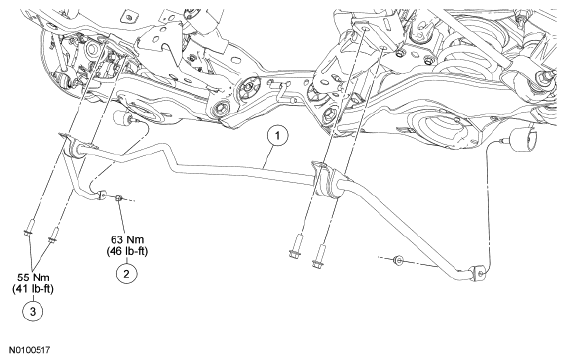

Fig 1: Stabilizer Bar Replacement Components With Torque Specifications (1 Of 2)

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION CHART

Item	Part Number	Description
1	5A771	Stabilizer bar
2	W520213	Stabilizer bar link lower nut (2 required)
3	W505274	Stabilizer bar bracket bolts (4 required)

Fig 2: Identifying Stabilizer Bar Components (2 Of 2)

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION CHART

Item	Part Number	Description
4	5F262	Muffler and tail pipe isolator (2 required)
