Stabilizer Bar Link: Notes

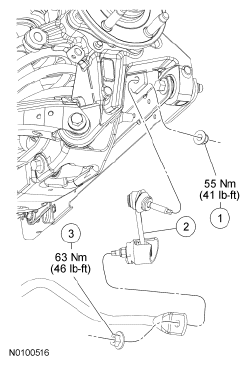

Fig 1: Stabilizer Bar Link Replacement Components With Torque Specifications
G06064905Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION CHART

Item Part Number Description
1 W520213 Stabilizer bar link upper nut
2 5D498 LH/ 5C486 RH Stabilizer bar link
3 W520213 Stabilizer bar link lower nut
