Removal And Installation: Spring: Notes

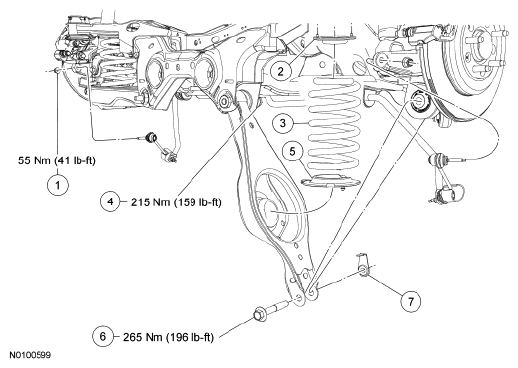

Fig 1: Spring Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION CHART

Item	Part Number	Description
1	W520213	Stabilizer bar link upper nut (2 required)
2	5599	Spring upper seat
3	5560	Spring
4	W711865	Lower arm-to-subframe bolt
5	5599	Spring lower seat
6	W711478	Lower arm-to-knuckle bolt
7	W520216	Lower arm-to-knuckle nut
