Shock Absorber: Notes

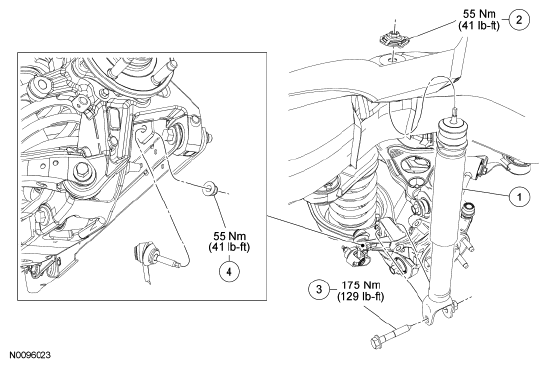

Fig 1: Shock Absorber Replacement Components With Torque Specifications (1 Of 2)

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION CHART

Item	Part Number	Description
1	18080	Shock absorber
2	18197	Shock absorber upper insulator and nut
3	W714366	Shock absorber lower bolt
4	W520213	Stabilizer bar link upper nut

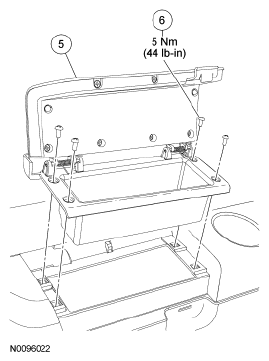

Fig 2: Shock Absorber Replacement Components With Torque Specifications (2 Of 2)

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION CHART

Item	Part Number	Description
5	13531	Rear quarter trim panel storage compartment
6	JW712518	Rear quarter trim panel storage compartment screw (4 required)
