Lower Arm: Notes

NOTE: Front Wheel Drive (FWD) vehicle shown in illustration, All-Wheel Drive (AWD) vehicle similar.

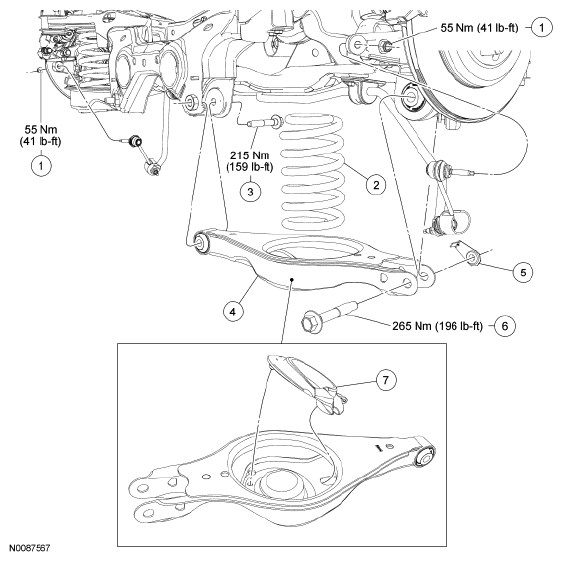

Fig 1: Lower Arm Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION CHART

Item	Part Number	Description
1	W520213	Stabilizer bar link upper nuts (2 required)
2	5560	Spring
3	W711865	Lower arm-to-subframe bolt
4	5B530	Lower arm
5	W713940	Lower arm-to-knuckle nut
6	W711479	Lower arm-to-knuckle bolt
7	5599	Spring lower seat
