Steering Gear: Material

MATERIAL SPECIFICATIONS

Item	Specification
MERCON® V Automatic Transmission Fluid XT-5-QM (or XT-5-QMC) (US); CXT-5-LM12 (Canada)	MERCON® V

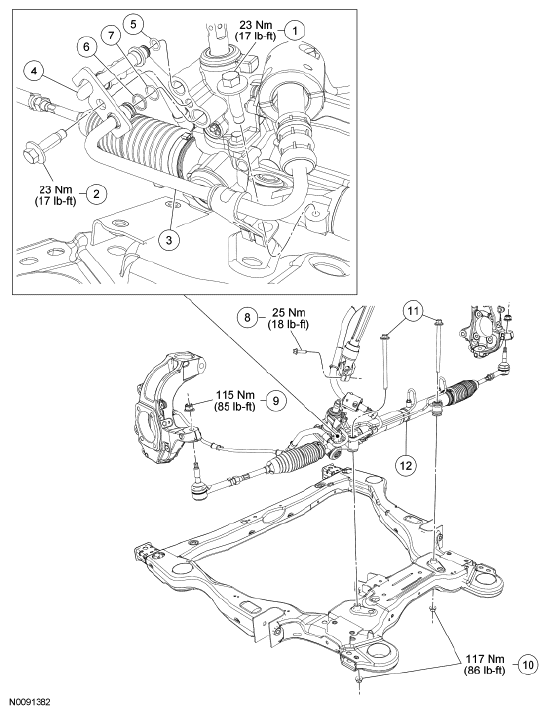

Fig 1: Steering Gear Replacement Components With Torque Specifications (1 Of 2)

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION CHART

Item	Part Number	Description
1	W712679	Pressure line-to-steering gear bracket bolt
2	W712679	Power steering line clamp plate bolt
3	3A719	Pressure line
4	3A713	Power steering return line
5	3F886-B	Power steering return line O-ring seal
6	3B602	Pressure line secondary O-ring seal
7	3F886-A	Pressure line primary O-ring seal
8	W712961	Steering column shaft-to-steering gear bolt
9	W710015	Tie-rod end nut (2 required)
10	W520515	Steering gear nuts (2 required)
11	W713000	Steering gear bolts (2 required)
12	3504	Steering gear

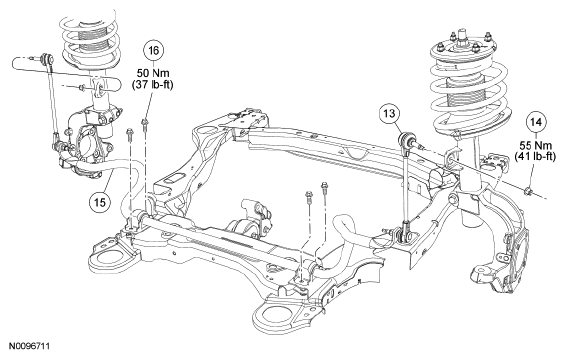

Fig 2: Steering Gear Replacement Components With Torque Specifications (2 Of 2)

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION CHART

Item	Part Number	Description
13	5K484	Stabilizer bar link (LH/RH)
14	W520213	Stabilizer bar link upper nut (2 required)
15	5482	Stabilizer bar
16	W713692	Stabilizer bar bracket bolt (4 required)
