Power Steering Pump: Material
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| MERCON® V Automatic Transmission Fluid XT-5-QM (or XT-5-QMC) (US); CXT-5-LM12 (Canada) | MERCON® V |

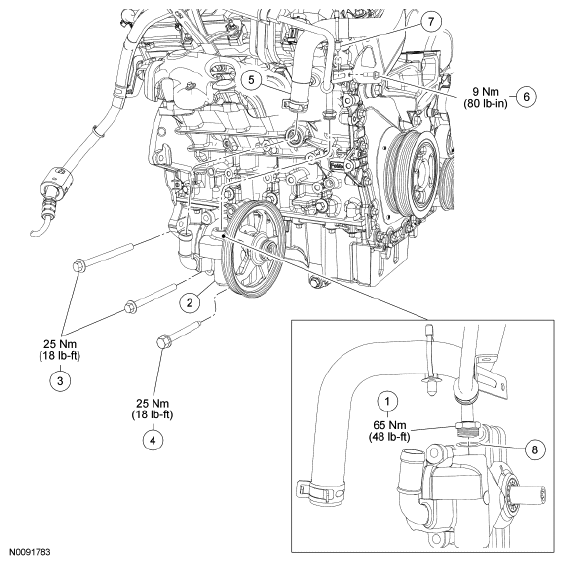

ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Pressure line fitting-to-power steering pump (part of 3A719) |
| 2 | 3A696 | Power steering pump |
| 3 | W7 04752 | Power steering pump bolts |
| 4 | W712504 | Power steering pump bolt |
| 5 | 3691 | Power steering fluid reservoir-to-pump supply hose |
| 6 | W506412 | Pressure line bracket-to-engine bolt |
| 7 | - | Power steering fluid reservoir-to-pump supply hose retainer (part of 3E525) |
| 8 | 388898 | Pressure line Teflon® seal |
