Power Steering Pump Pulley: Material

MATERIAL SPECIFICATIONS

Item Specification
MERCON® V Automatic Transmission Fluid XT-5-QM (or XT-5-QMC) (US); CXT-5-LM12 (Canada) MERCON® V

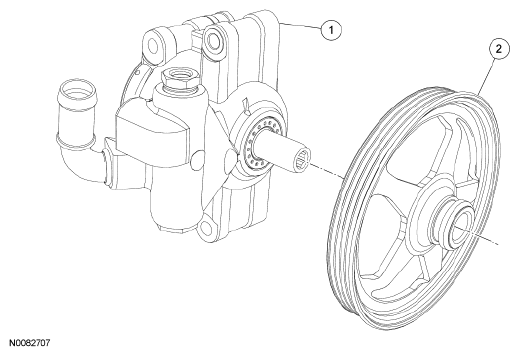

Fig 1: Identifying Power Steering Pump And Power Steering Pump Pulley
G06063980Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION CHART

Item Part Number Description
1 3A696 Power steering pump
2 3A733 Power steering pump pulley
