Power Steering Fluid Reservoir: Material

TORQUE SPECIFICATIONS

Item	Specification
MERCON® V Automatic Transmission Fluid XT-5-QM (or XT-5-QMC) (US); CXT-5-LM12 (Canada)	MERCON® V

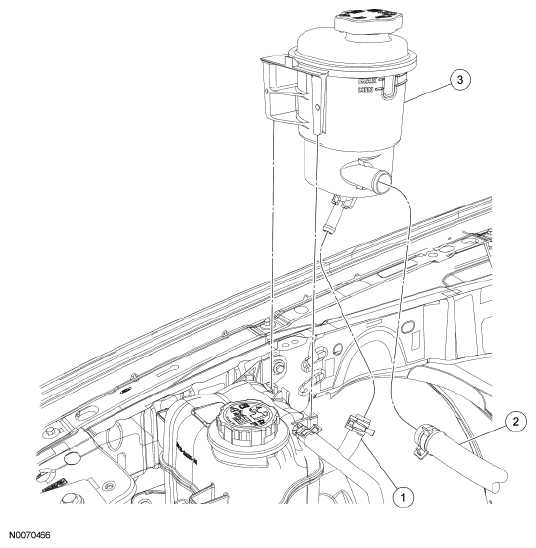

Fig 1: Identifying Power Steering Fluid Reservoir Components

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION

Item	Part Number	Description
1	3A713	Power steering fluid cooler-to-reservoir hose
2	3691	Power steering fluid reservoir-to-pump supply hose
3	3E764	Power steering fluid reservoir
