Safety Belt Buckle and Pretensioner: Notes

NOTE: Driver shown in illustration, passenger similar.

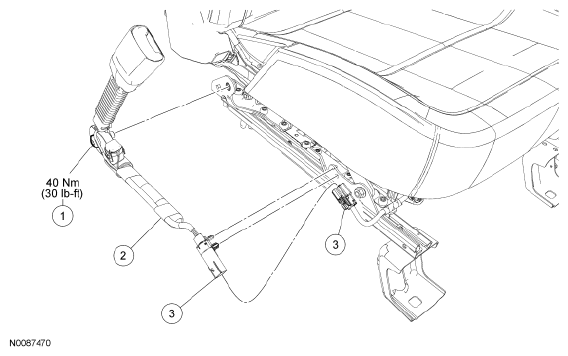

Fig 1: Exploded View Of Safety Belt Buckle And Pretensioner With Torque Specification

Courtesy of FORD MOTOR CO.

PARTS DESCRIPTION CHART

Item	Part Number	Description
1	-	Safety belt buckle and pretensioner bolt (part of 61203)
2	61203	Safety belt buckle and pretensioner
3	-	Electrical connectors
