Side Impact Sensor - Front Door
NOTE:
RH shown in illustration, LH similar.

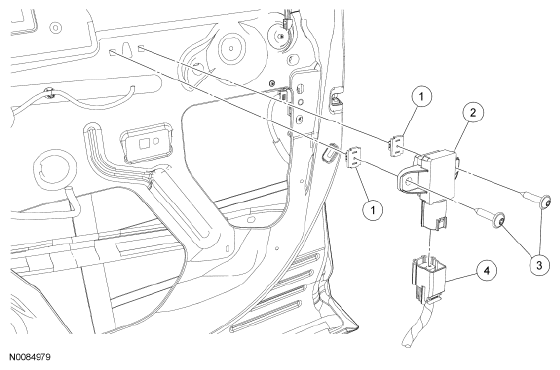

ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | W713617 | Insert nut (2 required) |
| 2 | 14B345 | Side impact sensor (pressure sensor) |
| 3 | W709996 | Side impact sensor screws (2 required) |
| 4 | - | Side impact sensor electrical connector (part of 14630) |
WARNING:
If a vehicle has been in a crash, inspect the restraints control module (RCM) and the impact sensor (if equipped) mounting areas for deformation. If damaged, restore the mounting areas to the original production configuration. A new RCM
and sensors must be installed whether or not the air bags have deployed. Failure to follow these instructions may result in serious personal injury or death in a crash.
NOTE:
The air bag warning indicator illuminates when the correct Restraints Control Module (RCM) fuse is removed and the ignition is ON.
NOTE:
The Supplemental Restraint System (SRS) must be fully operational and free of faults before releasing the vehicle to the customer.
- Depower the SRS . For additional information, refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING .
- Remove the front door trim panel. For additional information, refer to INTERIOR TRIM AND ORNAMENTATION .
- Disconnect the side impact sensor electrical connector.
- Remove the 2 screws and side impact sensor.
- To install, reverse the removal procedure.
- Inspect the insert nut for damage. If the insert nut is damaged, install a new insert.
- Repower the SRS . For additional information, refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING .
NOTE:
To prevent stripping the insert nuts, tighten the side impact sensor bolts only enough to retain the side impact sensor correctly.
