Side Air Bag Module - With Fold Flat: Notes

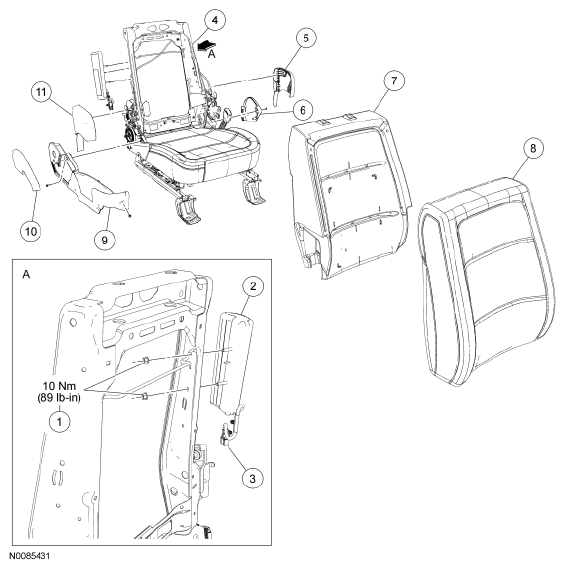

Fig 1: Exploded View Of Side Air Bag Module Torque Specification - With Fold Flat

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION

Item	Part Number	Description
1	W520111	Side air bag module nuts (2 required)
2	611D10	Side air bag module
3	-	Side air bag module electrical connector (part of 611D10)
4	-	Seat backrest frame
5	62187	Upper inboard recliner cover
6	62187	Lower inboard recliner cover
7	64810	Seat backrest foam pad
8	64416	Seat backrest trim cover
9	62186	Seat cushion side shield
10	61736	Manual recline handle (if equipped)
11	62186	Outboard recliner cover
