Seat Position Sensor

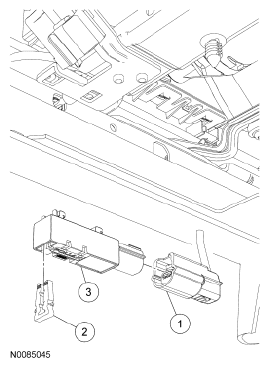

ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Seat position sensor electrical connector (part of 14A699) |
| 2 | - | Lock tab (part of 14B416) |
| 3 | 14B416 | Seat position sensor |
NOTE:
The air bag warning indicator illuminates when the correct Restraints Control Module (RCM) fuse is removed and the ignition is ON.
NOTE:
The Supplemental Restraint System (SRS) must be fully operational and free of faults before releasing the vehicle to the customer.
- Position the driver seat and remove the 4 seat-to-floor bolts. For additional information, refer to the REMOVAL AND INSTALLATION portion of SEATING .
- Depower the SRS . For additional information, refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING .
- Remove the seat position sensor.
- Release the lock tab and remove the seat position sensor from the seat bracket slots.
- Disconnect the electrical connector and remove the seat position sensor.
- To install, reverse the removal procedure.
- Repower the SRS . For additional information, refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING .
