Passenger Air Bag Module: Notes

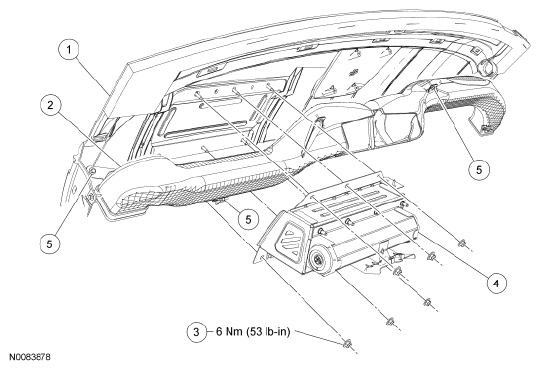

Fig 1: Passenger Air Bag Module Replacement Components With Torque Specifications
G06063823Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION

Item Part Number Description
1 04320 Instrument panel upper section
2 19B680 Air duct
3 W701152 Passenger air bag module nut (6 required)
4 044A74 Passenger air bag module
5 W707607 Air duct screws (6 required)
