Passenger Air Bag Deactivation (PAD) Indicator: Notes

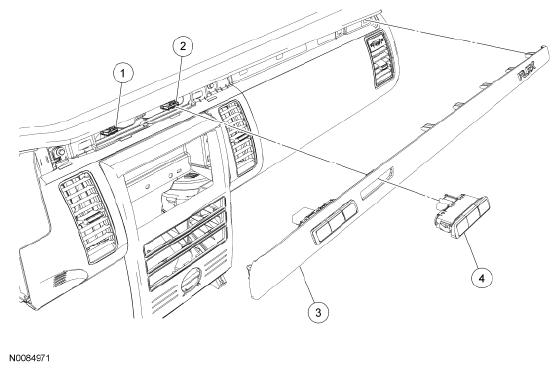

Fig 1: Identifying Passenger Air Bag Deactivation Indicator Components

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION

Item	Part Number	Description
1	-	Message center switch electrical connector (part of 14401)
2	-	Passenger Air Bag Deactivation (PAD) indicator electrical connector (part of 14401)
3	4338	RH instrument panel finish panel
4	13D730	PAD  indicator (part of Hazard/Traction control switch assembly)
