Front Impact Severity Sensor
NOTE:

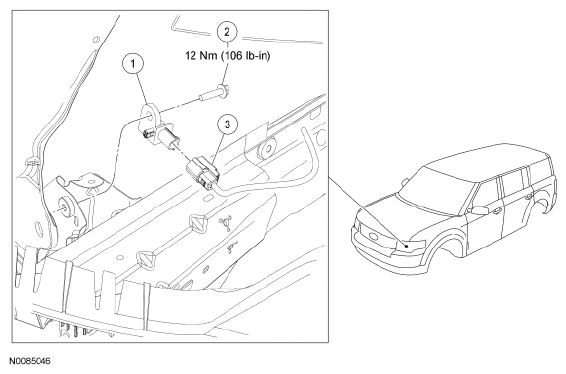

LH shown in illustration, RH similar.
ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | 14B006 | Front impact severity sensor |
| 2 | W505256 | Front impact severity sensor bolt |
| 3 | - | Front impact severity sensor electrical connector (part of 14630) |
WARNING:
If a vehicle has been in a crash, inspect the restraints control module (RCM) and the impact sensor (if equipped) mounting areas for deformation. If damaged, restore the mounting areas to the original production configuration. A new RCM
and sensors must be installed whether or not the air bags have deployed. Failure to follow these instructions may result in serious personal injury or death in a crash.
NOTE:
The air bag warning indicator illuminates when the correct Restraints Control Module (RCM) fuse is removed and the ignition is ON.
NOTE:
The Supplemental Restraint System (SRS) must be fully operational and free of faults before releasing the vehicle to the customer.
- Depower the SRS . For additional information, refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING .
- Remove the front impact severity sensor(s).
- For LH side, remove the air cleaner. For additional information, refer to INTAKE AIR DISTRIBUTION & FILTERING .
- Disconnect the electrical connector.
- Remove the bolt and front impact severity sensor(s).
- To install, tighten to 12 Nm (106 lb-in).
- To install, reverse the removal procedure.
- Repower the SRS . For additional information, refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING .
WARNING:
Always tighten the fasteners of the restraints control module (RCM) and impact sensor (if equipped) to the specified torque. Failure to do so may result in incorrect restraint system operation, which increases the risk of personal injury or death in a crash.
