Removal And Installation: Clockspring: Notes

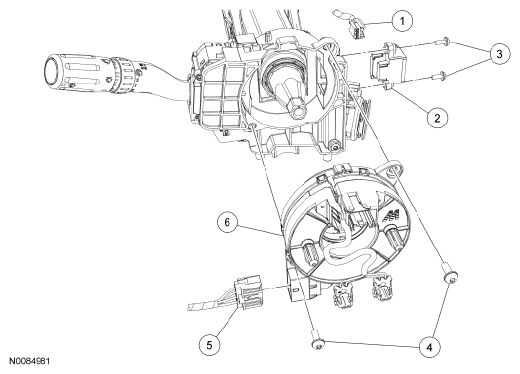

Fig 1: Identifying Clockspring Components

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION

Item	Part Number	Description
1	-	Steering wheel rotation sensor electrical connector (part of 14401)
2	3F818	Steering wheel rotation sensor
3	-	Steering wheel rotation sensor screws (2 required) (part of 3F818)
4	-	Clockspring screws (2 required) (part of 14A644)
5	-	Clockspring electrical connector (part of 14401)
6	14A644	Clockspring
