Air Bag and Safety Belt Pretensioner Supplemental Restraint System (SRS)
The Supplemental Restraint System (SRS) is designed to provide increased collision protection for front seat occupants in addition to that provided by the 3-point safety belt system. The SRS will also provide increased collision protection for the rear occupants with safety canopy modules. Safety belt use is necessary to obtain the best occupant protection and to receive the full advantage of the SRS .
The serviceable air bag and safety belt pretensioner SRS components are shown in the following illustrations.

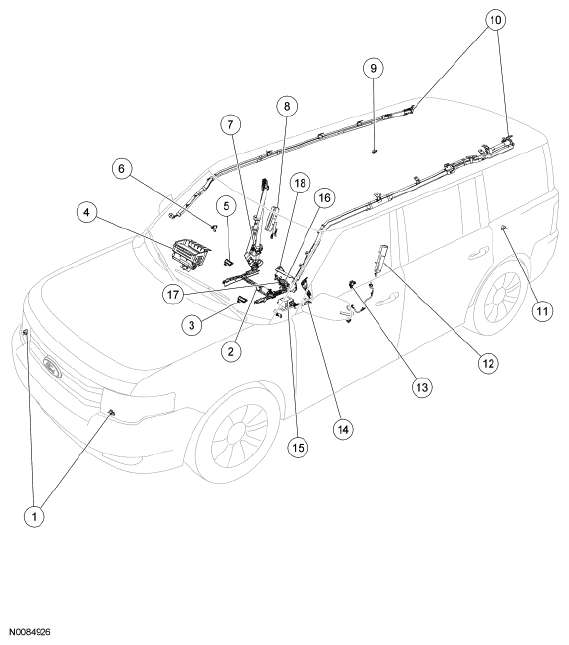

Air Bag and Safety Belt Pretensioner Supplemental Restraint System (SRS) Components
ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | 14B006 | Front impact severity sensors |
| 2 | 603B02 | Occupant Classification Sensor (OCS) system (part of passenger seat track assembly) |
| 3 | - | Occupant Classification System Module (OCSM) |
| 4 | 044A74 | Passenger air bag module |
| 5 | - | Passenger Air Bag Deactivation (PAD) indicator |
| 6 | 14C676 | First row side impact sensor, passenger side (pressure sensor, located in passenger door) |
| 7 | 611B08 | Passenger safety belt aditive load liminting retractor (includes belt tension sensor) |
| 8 | 611D10 | Passenger seat side air bag module |
| 9 | 14B006 | Second row side impact sensor, passenger side |
| 10 | 042D94 RH/042D95 LH | Safety canopy modules |
| 11 | 14B006 | Second row side impact sensor, driver side |
| 12 | 611D11 | Driver seat side air bag module |
| 13 | 14C676 | First row side impact sensor, driver side (pressure sensor, located in driver door) |
| 14 | 61203 | Driver safety belt buckle and pretensioner assembly (includes safety belt buckle switch) |
| 15 | 14B321 | Restraints Control Module (RCM) |
| 16 | 042B13 | Driver air bag module |
| 17 | 14A664 | Clockspring |
| 18 | 61202 | Passenger safety belt buckle and pretensioner assembly (includes safety belt buckle switch) |
| - | 14B416 | Driver seat position sensor (not shown) |
| - | 611B07 | Driver safety belt aditive load liminting retractor (not shown) |
