Underbody Line Connections
Underbody Line Connections

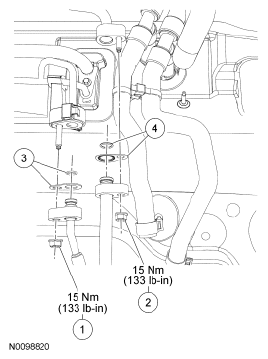

Fig 1: Underbody Line Connections With Torque Specifications
Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION
Item
Part Number
Description
1
W520413
Auxiliary evaporator inlet line fitting nut
2
W520413
Auxiliary evaporator outlet line fitting nut
3
19B596
O-ring seal and gasket seal kit
4
19B596
O-ring seal and gasket seal kit
