Thermostatic Expansion Valve Manifold and Tube Assembly: Material
MATERIAL SPECIFICATION
| Item | Specification |
|---|---|
| PAG Refrigerant Compressor Oil (R-134a Systems) YN-12-D |
WSH-M1C231-B |

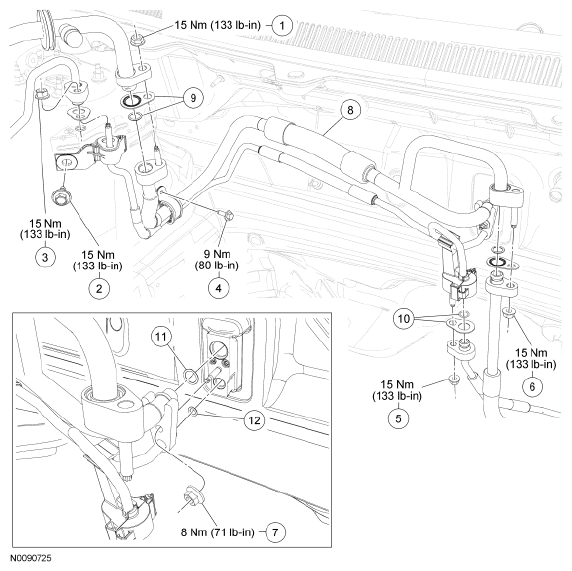

Fig 1: Thermostatic Expansion Valve Manifold And Tube Assembly Replacement Components With Torque Specifications
ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | W520413 | Evaporator outlet line fitting nut |
| 2 | W7 08877 | Evaporator inlet line fitting bracket bolt |
| 3 | W520413 | Evaporator inlet line fitting nut |
| 4 | - | Thermostatic Expansion Valve (TXV) manifold and tube bracket bolt (part of 19835) |
| 5 | W520413 | Auxiliary evaporator inlet line fitting nut |
| 6 | W520413 | Auxiliary evaporator outlet line fitting nut |
| 7 | W707142 | TXV fitting nut |
| 8 | 19835 | TXV manifold and tube assembly |
| 9 | 19B596 | O-ring seal and gasket seal kit (2 required) |
| 10 | 19B596 | O-ring seal and gasket seal kit (2 required) |
| 11 | 19E889 | O-ring seal |
| 12 | 19E889 | O-ring seal |
