Heating Ventilation Air Conditioning (HVAC) Module: Notes

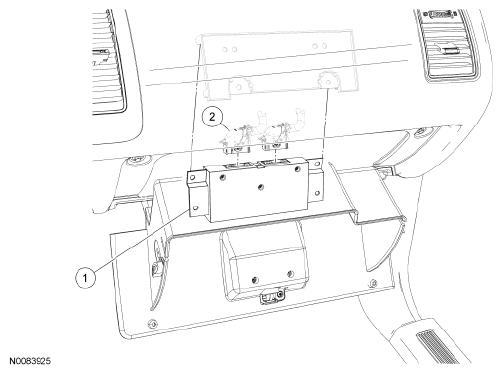

Fig 1: Identifying Heating Ventilation Air Conditioning (HVAC) Module
G06064745Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION

Item Part Number Description
1 19980 HVAC module
2 - HVAC module electrical connector (2 required) (part of 14401)
