Compressor to Condenser Discharge Line: Material

MATERIAL SPECIFICATION

Item	Specification
PAG Refrigerant Compressor Oil (R-134a Systems) YN-12-D	WSH-M1C231-B

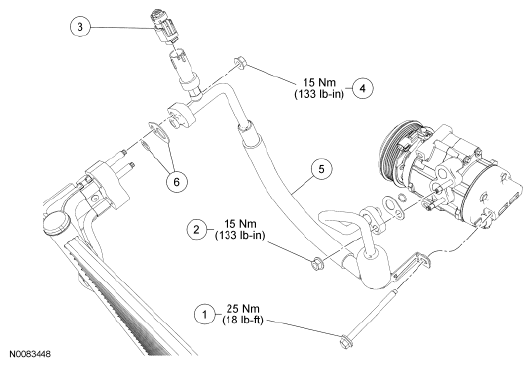

Fig 1: Condenser Discharge Line Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION

Item	Part Number	Description
1	W712611	Rear A/C compressor bolt
2	W520413	A/C compressor discharge fitting nut
3	-	A/C pressure transducer electrical connector (part of 14290)
4	W520413	Condenser inlet fitting nut
5	19972	Compressor-to-condenser discharge line
6	19B596	O-ring seal and gasket seal kit (2 required)
