Air Inlet Duct: Notes

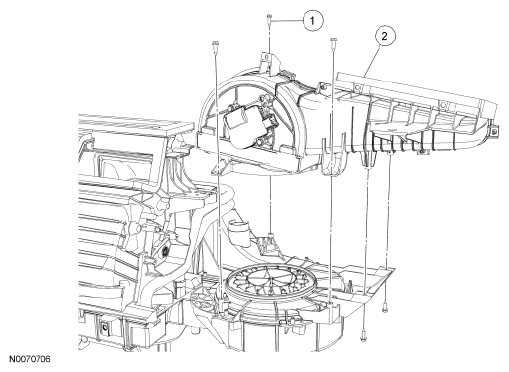

Fig 1: Identifying Air Inlet Duct Components
G06064726Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION

Item Part Number Description
1 W701696 Front air inlet duct screw (5 required)
2 18B259 Air inlet duct
