Air Conditioning (A/C) Compressor: Material

MATERIAL SPECIFICATION

Item	Specification
PAG Refrigerant Compressor Oil (R-134a Systems) YN-12-D	WSH-M1C231-B

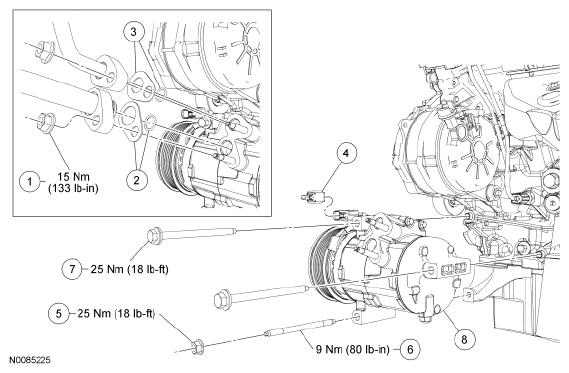

Fig 1: Air Conditioning (A/C) Compressor Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION

Item	Part Number	Description
1	W520413	A/C compressor fitting nut (suction and discharge) (2 required)
2	19B596	Gasket and O-ring seal kit
3	19B596	Gasket and O-ring seal kit
4	-	A/C clutch field coil electrical connector (part of 12B637)
5	W520413	A/C compressor mounting nut
6	W712610	A/C compressor mounting stud
7	W712611	A/C compressor bolt (2 required)
8	19703	A/C compressor
