Special Tool(s)
WARNING: This page is about a different variant/trim than selected.
SPECIAL TOOL REFERENCE
| Axle Seal Protector 205-816 |
|
| Front Hub Remover 205-D070 (D93P-1175-B) or equivalent |

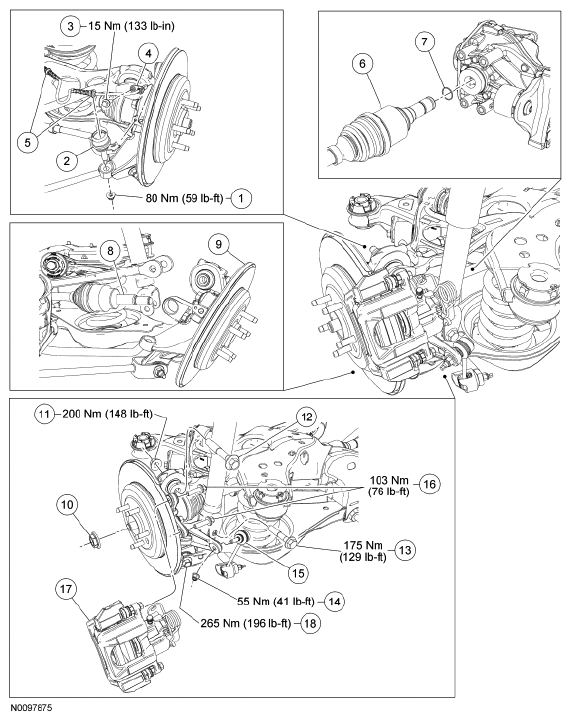

ITEM DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | W500747 | Toe link nut |
| 2 | 5B674 | Toe link |
| 3 | W712797 | Wheel speed sensor bolt |
| 4 | 2C190 | Wheel speed sensor |
| 5 | W520214 | Wheel speed sensor harness retainers (2 required) (part of 2C190) |
| 6 | 4K138/139 | Halfshaft inner CV joint |
| 7 | - | Circlip |
| 8 | 4K138/139 | Halfshaft outer CV joint |
| 9 | 5B758/5B759 | Wheel knuckle |
| 10 | W712435 | Wheel hub nut |
| 11 | W520517 | Upper arm-to-wheel knuckle nut |
| 12 | W711479 | Upper arm-to-wheel knuckle bolt |
| 13 | W714033 | Shock absorber lower bolt |
| 14 | W520213 | Stabilizer bar link upper nut |
| 15 | 5D498 LH/ 5C486 RH | Stabilizer bar link |
| 16 | W710681 | Brake caliper anchor plate bolts (2 required) |
| 17 | - | Brake caliper anchor plate and caliper assembly |
| 18 | W711478 | Lower arm-to-wheel knuckle bolt |
