Drive Pinion Seal: Material
WARNING: This page is about a different variant/trim than selected.
MATERIAL SPECIFICATION
| Item |
Specification |
Premium Long-Life Grease
XG-1-C or XG-1-K (US); CXG-1-C (Canada) |
ESA-M1C75-B |

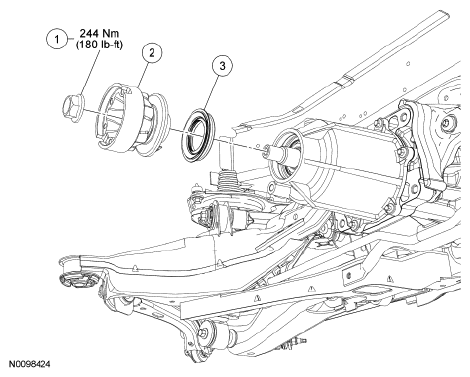

Courtesy of FORD MOTOR CO. ITEM DESCRIPTION CHART
| Item |
Part Number |
Description |
| 1 |
4320 |
Pinion nut |
| 2 |
4858 |
Pinion flange |
| 3 |
4676 |
Pinion seal |
