Instrument Panel Dimmer Switch: Notes
WARNING: This page is about a different car, the 2007 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

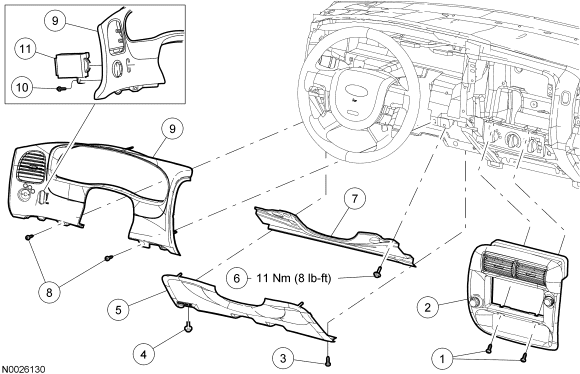

| Item | Part Number | Description |
|---|---|---|
| 1 | W701679 | Center instrument panel finish panel screws (2 required) |
| 2 | 1004302 | Center instrument panel finish panel |
| 3 | W705314 | Instrument panel steering column cover screws (2 required) |
| 4 | N807316 | Hood latch release handle bolts (2 required) |
| 5 | 10044F08 | Instrument panel steering column cover |
| 6 | N807316 | Lower instrument panel reinforcement bolts (5 required) |
| 7 | 10017A28 | Lower instrument panel reinforcement |
| 8 | W705314 | Instrument cluster finish panel screws (5 required) |
| 9 | 011201 | Instrument cluster finish panel |
| 10 | 385754-S36 | Instrument panel dimmer switch screws (2 required) |
| 11 | 11691 | Instrument panel dimmer switch |
