Parking Brake Cable - Rear: Notes

WARNING: This page is about a different car, the 2007 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

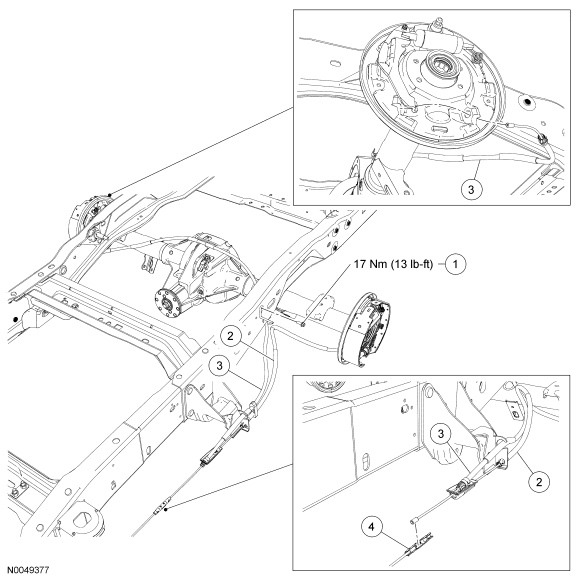

Fig 1: Exploded View Of Rear Parking Brake Cable With Torque Specifications
GF0009927Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Parking brake cable wire form bracket bolt
2 2A635 LH rear parking brake cable
3 2A635 RH rear parking brake cable
4 2A793 Intermediate parking brake cable
