Parking Brake Cable - Front: Notes

WARNING: This page is about a different car, the 2007 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

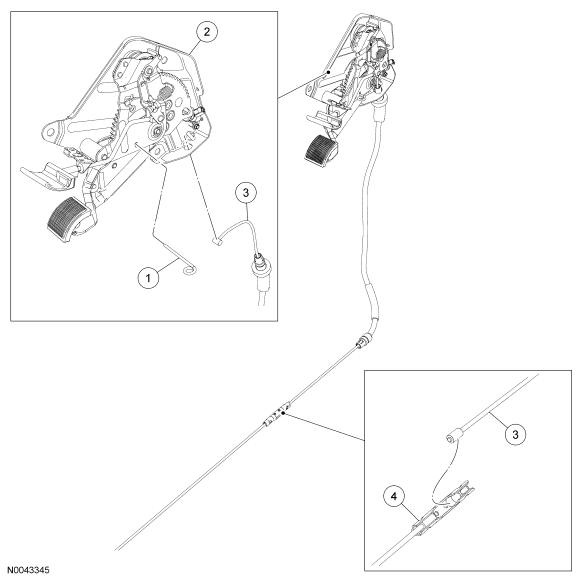

Fig 1: Exploded View Of Front Parking Brake Cable

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Retaining pin
2	2780	Parking brake control
3	2853	Front parking brake cable
4	2A793	Intermediate cable
