Key Release Button: Notes

WARNING: This page is about a different car, the 2007 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

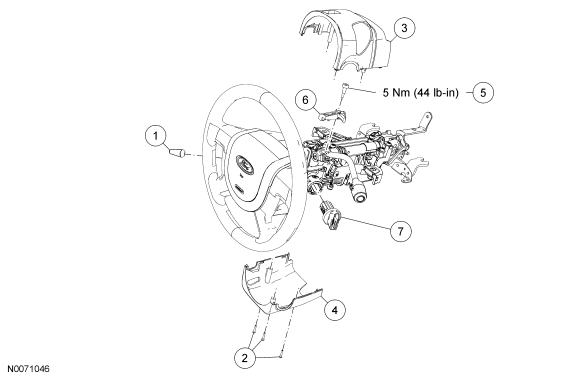

Fig 1: Exploded View Of Steering Column Components With Torque Specification
GF0010835Courtesy of FORD MOTOR CO.
Item Part Number Description
1 3F609 Tilt release lever/ handle
2 391727 Steering column shroud screws (3 required)
3 3530 Upper steering column shroud
4 3533 Lower steering column shroud
5 3F530 Key release button bolt
6 3F528 Key release button
7 11582 Ignition switch lock cylinder
