Ignition Switch: Notes
WARNING: This page is about a different car, the 2007 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

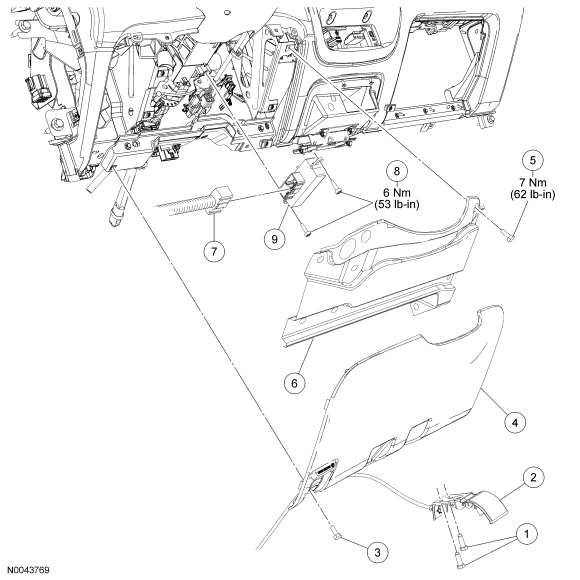

| Item | Part Number | Description |
|---|---|---|
| 1 | N804693 | Hood latch release handle bolts (2 required) |
| 2 | 16B975 | Hood latch release handle assembly |
| 3 | W705314 | Steering column opening cover bolt (2 required) |
| 4 | 1004459 | Steering column opening cover |
| 5 | W705962 | Steering column opening cover reinforcement bolts (5 required) |
| 6 | 10017A28 | Steering column opening cover reinforcement |
| 7 | - | Ignition switch electrical connector |
| 8 | N806584 | Ignition switch screws |
| 9 | 11572 | Ignition switch |
