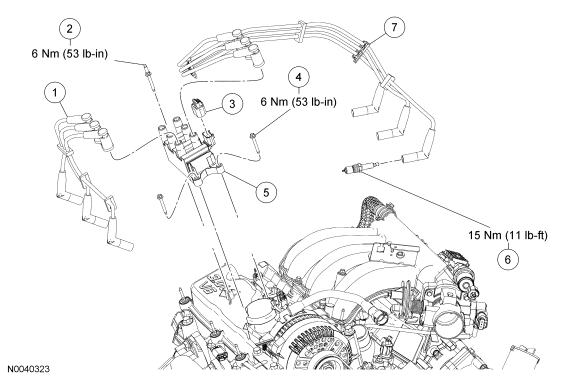

Engine Ignition Components - Exploded View
WARNING: This page is about a different car, the 2007 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | 12259 | Spark plug wire set |
| 2 | W706825 | Ignition coil stud bolt |
| 3 | - | Ignition coil electrical connector (part of 12B637) |
| 4 | W706995 | Ignition coil bolt (3 required) |
| 5 | 12029 | Ignition coil |
| 6 | 12405 | Spark plug (6 required) |
| 7 | 12297 | Spark plug wire retainer (7 required) |
- For additional information, refer to the appropriate procedures.
