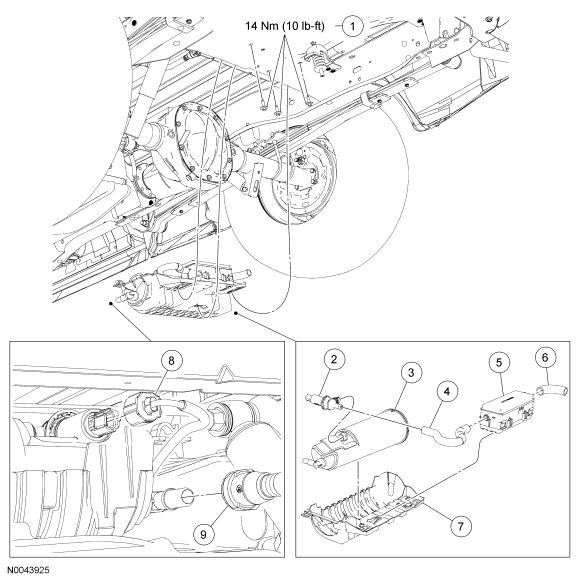

Evaporative Emissions (EVAP) System Components - Exploded View
WARNING: This page is about a different car, the 2007 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | W503932 | Evaporative emissions (EVAP) canister and bracket assembly bolts |
| 2 | 9F945 | EVAP canister vent solenoid |
| 3 | 9D653 | EVAP canister |
| 4 | 9F459 | EVAP canister vent solenoid-to-EVAP dust separator hose |
| 5 | 9B328 | EVAP dust separator |
| 6 | 9F459 | EVAP dust separator hose |
| 7 | 9D665 | EVAP canister bracket |
| 8 | - | EVAP canister vent solenoid electrical connector (part of 14405) |
| 9 | - | Rear fuel tank vapor tube and fuel tank pressure sensor assembly-to-EVAP canister quick connect coupling (part of 9G291) |
- For additional information, refer to the appropriate procedures.
