Positive Crankcase Ventilation (PCV) Valve - 4.0L SOHC: Notes

WARNING: This page is about a different car, the 2007 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

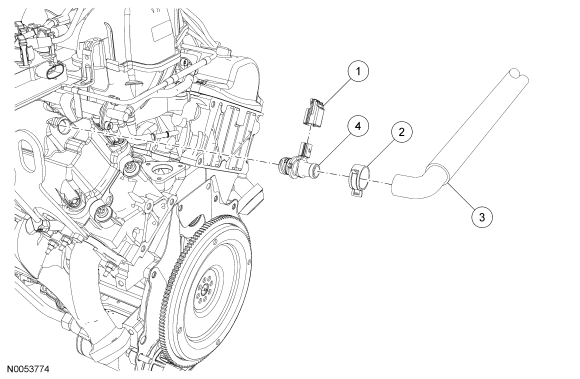

Fig 1: Exploded View Of Positive Crankcase Ventilation (PCV) Valve - 4.0L SOHC
GF0009589Courtesy of FORD MOTOR CO.
Item Part Number Description
1 14A464 Positive crankcase ventilation (PCV) valve electrical connector (part of 12B637)
2 W525960 Hose spring clamp
3 6K817 PCV valve hose assembly
4 6A666 PCV valve
