Exhaust Gas Recirculation (EGR) System Components - Exploded View, 4.0L SOHC
WARNING: This page is about a different car, the 2007 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

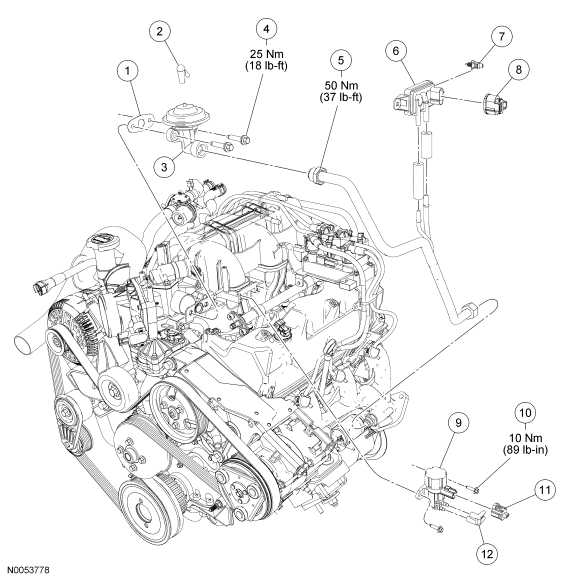

Fig 1: Exploded View Of Exhaust Gas Recirculation (EGR) System Components With Torque Specifications - 4.0L SOHC
| Item | Part Number | Description |
|---|---|---|
| 1 | 9D476 | Exhaust gas recirculation (EGR) valve gasket |
| 2 | 9E499 | EGR valve vacuum connector |
| 3 | 9D475 | EGR valve assembly |
| 4 | W701232 | EGR valve bolt (2 required) |
| 5 | 9E469 | EGR tube |
| 6 | 9J460 | Differential pressure feedback EGR sensor |
| 7 | 13A506 | Push pin wire retainer |
| 8 | 14A464 | Differential pressure feedback EGR sensor electrical connector |
| 9 | 9J459 | EGR vacuum regulator solenoid |
| 10 | W704310 | EGR vacuum regulator solenoid bolt (2 required) |
| 11 | 14A464 | EGR vacuum regulator solenoid electrical connector |
| 12 | 9E499 | EGR vacuum regulator solenoid vacuum connector |
- For additional information, refer to the appropriate procedures.
