Crankcase Vent Oil Separator - 2.3L: Notes

WARNING: This page is about a different car, the 2007 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

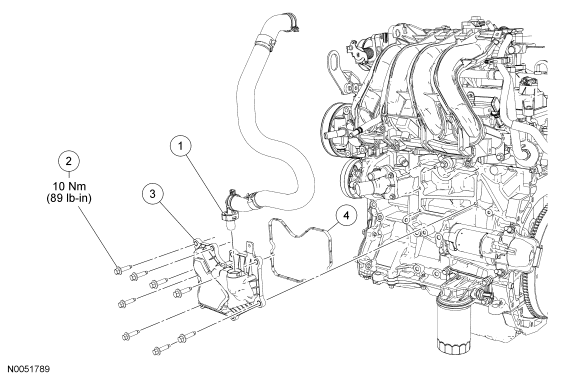

Fig 1: Exploded View Of Crankcase Vent Oil Separator With Torque Specifications - 2.3L
GF0009590Courtesy of FORD MOTOR CO.
Item Part Number Description
1 6758 Vacuum hose assembly
2 W500214 Crankcase vent oil separator bolt (8 required)
3 6A785 Crankcase vent oil separator
4 6B752 Crankcase vent oil separator gasket
