Transmission Support Crossmember
WARNING: This page is about a different car, the 2007 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | N621945-S439 | Transmission mount nut (2 required) |
| 2 | N802594 | Transmission crossmember bolt (2 required) |
| 3 | N620482 | Transmission crossmember nut (2 required) |
| 4 | - | Transmission crossmember bolt (4 required) |
| 5 | - | Transmission crossmember nut (4 required) |
| 6 | 6A023 | Transmission crossmember |
- With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING AND LIFTING .
- Remove the 2 transmission mount nuts from the transmission support crossmember.
- To install, tighten to 90 N.m (66 lb-ft).
- Support the transmission with a suitable jack.
- Remove the transmission support crossmember.
- Remove the 2 horizontal transmission support crossmember bolts and nuts (1 each side).
- To install, tighten to 127 Nm (94 lb-ft).
- Remove the 4 vertical transmission support crossmember bolts and nuts (2 each side).
- To install, tighten to 99 Nm (73 lb-ft).
- Remove the transmission support crossmember.
- Remove the 2 horizontal transmission support crossmember bolts and nuts (1 each side).
- To install, reverse the removal procedure.
CAUTION:
Do not allow the transmission to hang freely.
NOTE:

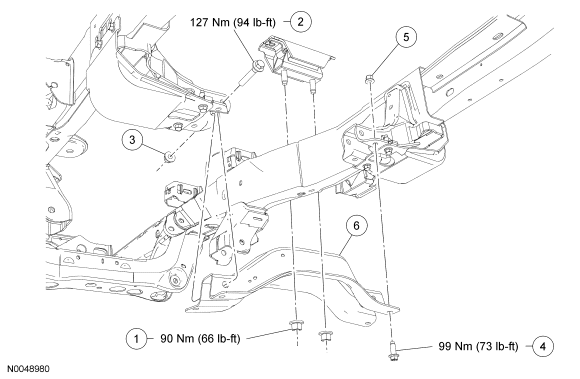

Four wheel drive (4WD) transmission support crossmember shown, rear wheel drive (RWD) transmission support crossmember similar.
