Underbody Misalignment Check

WARNING: This page is about a different car, the 2007 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

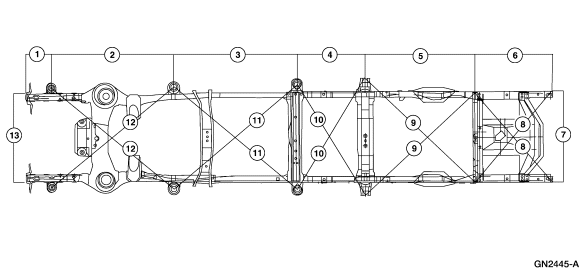

Fig 1: Frame Dimensions, Short Wheelbase Four Wheel Drive (4WD)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	237.0 mm (9.33 in)
2	-	1,162.5 mm (45.77 in)
3	-	1,069.5 mm (42.11 in)
4	-	469.9 mm (18.50 in)
5	-	998.3 mm (39.30 in)
6	-	552.2 mm (21.74 in)
7	-	834.0 mm (32.83 in)
8	-	974.9 mm (38.38 in)
9	-	1,364.9 mm (53.74 in)
10	-	1,123.6 mm (44.24 in)
11	-	1,434.8 mm (56.49 in)
12	-	1,487.2 mm (58.55 in)
13	-	799.0 mm (31.46 in)

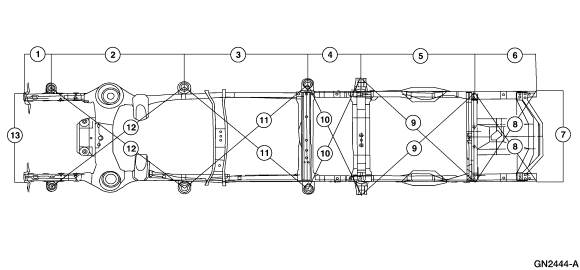

Fig 2: Frame Dimensions, Long Wheelbase, Four Wheel Drive (4WD)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	237.0 mm (9.33 in)
2	-	1,162.5 mm (45.77 in)
3	-	1,071.5 mm (42.18 in)
4	-	621.9 mm (24.48 in)
5	-	998.3 mm (39.30 in)
6	-	705.2 mm (27.76 in)
7	-	834.0 mm (32.83 in)
8	-	1,068.6 mm (42.07 in)
9	-	1,364.9 mm (53.74 in)
10	-	1,193.1 mm (46.97 in)
11	-	1,431.1 mm (56.34 in)
12	-	1,487.2 mm (58.55 in)
13	-	799.0 mm (31.46 in)

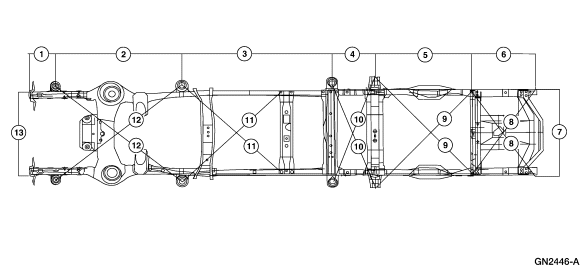

Fig 3: Frame Dimensions, SuperCab, Four Wheel Drive (4WD)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	237.0 mm (9.33 in)
2	-	1,162.5 mm (45.77 in)
3	-	1,487.5 mm (58.56 in)
4	-	412.7 mm (16.25 in)
5	-	998.3 mm (39.30 in)
6	-	552.2 mm (21.74 in)
7	-	834.0 mm (32.83 in)
8	-	974.9 mm (38.38 in)
9	-	1,358.3 mm (53.48 in)
10	-	1,106.2 mm (43.55 in)
11	-	1,315.8 mm (51.80 in)
12	-	1,487.2 mm (58.55 in)
13	-	799.0 mm (31.46 in)

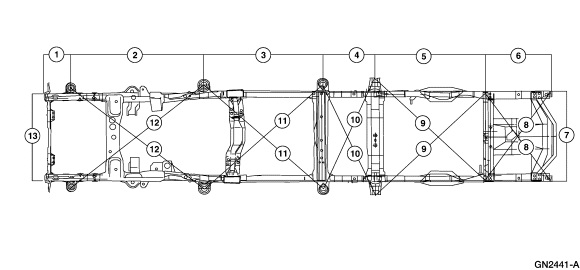

Fig 4: Frame Dimensions, Short Wheelbase, Rear Wheel Drive (RWD)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	237.0 mm (9.33 in)
2	-	1,162.5 mm (45.77 in)
3	-	1,069.5 mm (42.11 in)
4	-	469.9 mm (18.50 in)
5	-	998.3 mm (39.30 in)
6	-	552.2 mm (21.74 in)
7	-	834.0 mm (32.83 in)
8	-	974.9 mm (38.38 in)
9	-	1,364.9 mm (53.74 in)
10	-	1,118.6 mm (44.04 in)
11	-	1,431.1 mm (56.34 in)
12	-	1,487.2 mm (58.55 in)
13	-	799.0 mm (31.46 in)

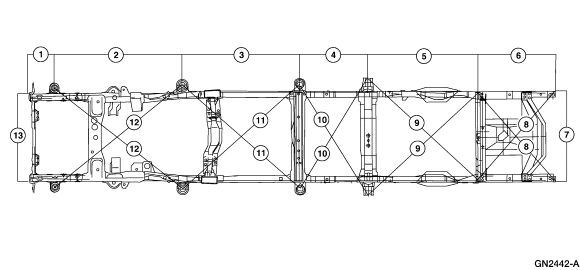

Fig 5: Frame Dimensions, Long Wheelbase, Rear Wheel Drive (RWD)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	237.0 mm (9.33 in)
2	-	1,162.5 mm (45.77 in)
3	-	1,069.5 mm (42.11 in)
4	-	621.9 mm (24.48 in)
5	-	998.3 mm (39.30 in)
6	-	705.1 mm (27.76 in)
7	-	834.0 mm (32.83 in)
8	-	1,068.6 mm (42.07 in)
9	-	1,365.1 mm (53.74 in)
10	-	1,190.4 mm (46.87 in)
11	-	1,431.1 mm (56.34 in)
12	-	1,487.2 mm (58.55 in)
13	-	799.0 mm (31.46 in)

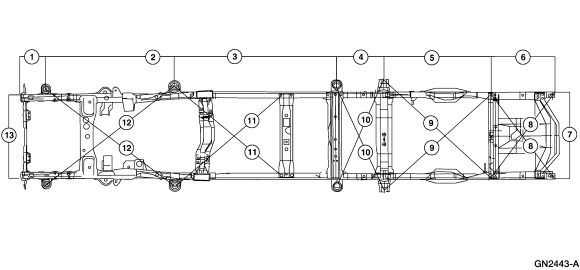

Fig 6: Frame Dimensions, SuperCab, Rear Wheel Drive (RWD)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	237.0 mm (9.33 in)
2	-	1,162.5 mm (45.77 in)
3	-	1,487.5 mm (58.56 in)
4	-	412.7 mm (16.25 in)
5	-	998.3 mm (39.30 in)
6	-	552.2 mm (21.74 in)
7	-	833.7 mm (32.82 in)
8	-	974.9 mm (38.38 in)
9	-	1,364.9 mm (53.74 in)
10	-	1,106.2 mm (43.55 in)
11	-	1,315.8 mm (51.80 in)
12	-	1,487.2 mm (58.55 in)
13	-	799.0 mm (31.46 in)

Fig 7: Frame, Short Wheelbase, Rear Wheel Drive (RWD) Shown

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	709.7 mm (27.94 in)
2	-	485.9 mm (19.13 in)
3	-	606.3 mm (23.87 in)
4	-	599.0 mm (23.58 in)
5	-	548.7 mm (18.49 in)
6	-	739.1 mm (29.10 in)

Fig 8: Frame, Long Wheelbase, Rear Wheel Drive (RWD) Shown

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	709.7 mm (27.94 in)
2	-	485.9 mm (19.13 in)
3	-	511.0 mm (20.12 in)
4	-	599.0 mm (23.58 in)
5	-	548.7 mm (18.49 in)
6	-	750.0 (29.53 in)

Fig 9: Frame, SuperCab, Rear Wheel Drive (RWD) Shown

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	709.7 mm (27.94 in)
2	-	485.9 mm (19.13 in)
3	-	520.5 mm (20.49 in)
4	-	500.0 mm (19.69 in)
5	-	548.7 mm (21.60 in)
6	-	721.0 mm (28.39 in)

Fig 10: Frame, Short Wheelbase, Four Wheel Drive (FWD) Shown

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	705.8 mm (27.79 in)
2	-	397.9 mm (15.67 in)
3	-	505.3 mm (19.89 in)
4	-	599.0 mm (23.58 in)
5	-	548.8 mm (21.61 in)
6	-	739.1 mm (29.10 in)

Fig 11: Frame, Long Wheelbase, Four Wheel Drive (FWD) Shown

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	705.8 mm (27.79 in)
2	-	397.9 mm (15.67 in)
3	-	505.3 mm (19.89 in)
4	-	599.0 mm (23.58 in)
5	-	548.8 mm (21.61 in)
6	-	750.0 mm (29.53 in)

Fig 12: Frame, SuperCab, Four Wheel Drive (FWD) Shown

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	705.8 mm (27.79 in)
2	-	485.9 mm (19.13 in)
3	-	520.5 mm (20.49 in)
4	-	500.0 mm (19.69 in)
5	-	548.8 mm (21.61 in)
6	-	739.1 mm (29.10 in)

NOTE: On a known level surface, verify that the vehicle ride height is within specification before proceeding with the frame height measurements. For additional information, refer to SUSPENSION SYSTEM - GENERAL INFORMATION .

The dimensions of the underbody must be restored if repairing major body damage to provide correct front and rear wheel geometry. Once the frame and suspension members are aligned, other operations can be carried out.
