Frame and Body Mounting

WARNING: This page is about a different car, the 2007 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

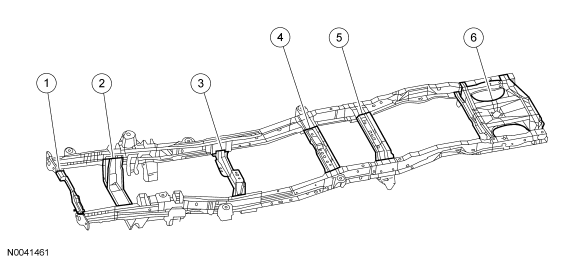

Fig 1: Frame, Four Wheel Drive (4WD) Short Wheel Base Shown

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	No. 1A crossmember (4x4 only)
2	-	No. 1 crossmember
3	-	Transmission crossmember
4	-	Cab support crossmember
5	-	Pickup bed support
6	-	Rear crossmember

The frame consists of 2 steel channel rails, a rear crossmember, a number of additional support crossmember and a front crossmember.

The No. 1A (4WD only) and the No. 1 crossmember are welded to the frame side rails. The remaining frame crossmember are riveted and/or bolted into place.

Fig 2: Body to Frame Mounting

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	N621946-S2	Nut and washer
2	N800788-S2	Spacer
3	1000192	Upper insulator assembly
4	1000193	Lower insulator assembly
5	N800442-S428	Bolt

Fig 3: Body to Frame Mounting

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	N808698	Bolt and washer
2	N802289	Spacer
3	1000192	Upper insulator assembly
4	1000193	Lower insulator assembly

Fig 4: Rear Cab to Frame Mount, SuperCab

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W705283-S428	Bolt and washer
2	N802289-S2	Spacer
3	1000192	Upper insulator assembly
4	1000193	Lower insulator assembly

Fig 5: Rear Cab to Frame Mount, Regular Cab

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W705283-S428	Bolt and washer
2	N802289-S2	Spacer
3	1000192	Upper insulator assembly
4	1000193	Lower insulator assembly
