Instrument Cluster (IC): Notes
WARNING: This page is about a different car, the 2007 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

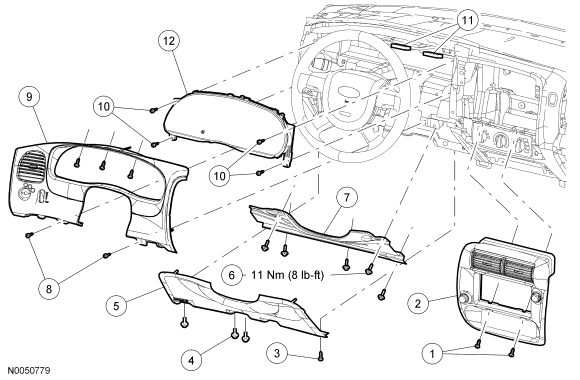

| Item | Part Number | Description |
|---|---|---|
| 1 | W701679 | Center instrument panel finish panel screws (2 required) |
| 2 | 1004302 | Center instrument panel finish panel |
| 3 | W705314 | Instrument panel steering column cover screws (2 required) |
| 4 | N807316 | Hood latch release handle bolts (2 required) |
| 5 | 04459 | Instrument panel steering column cover |
| 6 | N807316 | Lower instrument panel reinforcement bolts (5 required) |
| 7 | 10017A28 | Lower instrument panel reinforcement |
| 8 | W705314 | Instrument cluster (IC) finish panel screws (5 required) |
| 9 | 044D70 | Instrument cluster (IC) finish panel |
| 10 | N807122 | Instrument cluster (IC) screws (4 required) |
| 11 | - | Instrument cluster (IC) electrical connectors (part of 14401) |
| 12 | 10849 | Instrument cluster (IC) |
