Safety Belt Shoulder Height Adjuster: Notes

WARNING: This page is about a different car, the 2007 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: LH shown, RH similar.

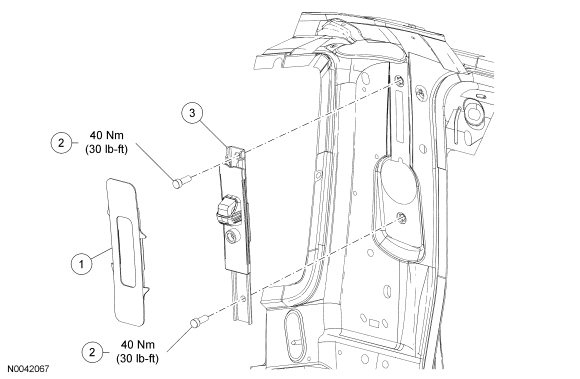

Fig 1: Safety Belt Shoulder Height Adjuster With Torque Specifications
GF0008780Courtesy of FORD MOTOR CO.
Item Part Number Description
1 602B90 Safety belt shoulder height adjuster cover
2 - Safety belt shoulder height adjuster bolts (2 required)
3 602B82 Safety belt shoulder height adjuster
